• RFX-1 reflectance fixture with integrated 10 watt halogen bulb for VIS-NIR. Place samples on top of fixture for real-time reflectance analysis. Collimating lens reduces sample spot size to 5mm and feeds the SMA-905 fiber optic interface to the spectrometer
• RFX-2 reflectance fixture with integrated 10,000 hour 5 watt halogen bulb for VIS-NIR. No collimating lens increases sample spot size to 20mm for the SMA-905 fiber optic interface to the spectrometer. Ideal for delta-E* color measurements. Ultimate stability achieved with 2 stage bulb power supply
• RFX-3D is similar to the RFX-1 with 3 fiber connectors to spectrometer each positioned 120 degrees in a circle thus eliminating the need to rotate coarse grain samples. Reflectance from 3 positions is combined using special 3-to-1 fiber for spectrometer.

 Laser Safety Goggles

Single strand, multimode fiber optic cables are available with SMA905 connectors, 1⁄4 inch dia. steel mono-coil armor with black PVC jacket. Sizes include 400, 600, or 1000μm core diameters
Standard lengths are 1 and 2 meters ␣ Custom lengths are available with a minimum price of a 1 meter fiber (extra delivery time also)
Solarization resistant fibers available for deep UV applications below 300nm in all diameters

• F400-UVVis-SR, F600-UVVis-SR, and F1000-UVVis-SR-1 Solarization resistant fibers available for deep UV applications below 400nm available in all diameters
• F400-VISNIR, F600-VISNIR, and F1000-VISNIR-1 are low OH fibers (400-2200 nm) are needed for VIS-NIR applications. They offer lowest possible internal light attenuation. Intended for applications with long fiber lengths, available in all diameters

Specialty fibers available for various applications. Y-cables to couple 2 spectrometer systems, Y-bundled cables to couple 2 light sources, 1 to 3 splitter cables, and all types of custom fibers to meet your application.

Very Low Noise Levels
Noise levels of a photo detector, but with the high energies of a pyroelectric:

• 50 nJ with the MT coating
• 100 nJ with the BL coating

2 coatings Available:

• BL: Black coatings, sensitivity of 900 V/J, readings up to 400 Hz
• MT: Metallic coating, sensitivity of 2400 V/J, readings up to 1000 Hz

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 2 different cooling modules

Low Noise Level
0.7 µJ for the MB coating

QED Attenuator Available
Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength

Available with Metallic Absorber
High Repetition Rate (6000 Hz)

Test Target Included
With the MB models

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 2 different cooling modules

Low Noise Level
2 µJ for the MB coating

QED Attenuator Available
Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength

High Repetition Rate Options

• QE-MB: 300 hz (Standard)
• QE-MB: 1 000 hz (upon request)
• QE-MT: 6 000 hz (Standard)

Test Target Included
With the MB models

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 2 different cooling modules

Low Noise Level
10 µJ for the MB coating

QED Attenuator Available
Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength

High Repetition Rate Options

• QE-MB: 200 hz (Standard)
• QE-MB: 500 hz (upon request)
• QE-MT: 4 000 hz (Standard)

Test Target Included
With the MB models

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 2 different cooling modules

Large Aperture
Effective aperture of 65 x 65 mm

Low Noise Level
10 µJ for the MB coating

QED Attenuator Available
Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength

Test Target Included
With the MB models

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 2 different cooling modules

Extra large Aperture
Effective aperture of 95 mm Ø

Low Noise Level
15 µJ for the MB coating

QED Attenuator Available
Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength

Test Target Included
With the MB models

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 3 different cooling modules

High Performance

• Fast Rise Time (0.3 sec)
• High Damage Threshold (36 kW/cm2)

Compact Design
Only 14 mm thick (10S model)

Energy Mode
Measure single shot energy up to 5 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 5 different cooling modules

High Performance

• Fast Rise Time (0.6 sec)
• High Damage Threshold (45 kW/cm₂)

Compact Design
Only 20.6 mm thick (15S model)

Energy Mode
Measure single shot energy up to 15 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 4 different cooling modules

High Performance

• Fast Rise Time (1.3 sec)
• High Damage Threshold (45 kW/cm₂)

Energy Mode
Measure single shot energy up to 40 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 4 different cooling modules

High Performance

• Fast Rise Time (2 sec)
• High Damage Threshold (45 kW/cm₂)

Compact Design
Only 32 mm thick (40S model)

Energy Mode
Measure single shot energy up to 200 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Ultra Thin Casing
Only 10.7 mm thick!

Choice Between 2 Absorbers

• H5: 36 kW/cm₂
• W5: Unequalled 100 kW/cm₂

High “Power to Size” Ratio
6 W continuous reading

Energy Mode
Measure single shot energy up to 200 J (with the W5 version)

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Low Power Thermopile
Noise level of a photo detector with the large bandwidth and high power capacity of a thermal device

Minimal Thermal Drift
Only 6 µW/°C (with the IR filter)

High Sensitivity
200 mV/W (without the IR filter)

Special Model for Ultrashort Pulses
VP (Volume Absorber) version is perfect for low power lasers with ultrashort pulses (ps and fs)

IR Filter (XLPF12 Model)
Removes unwanted IR interference

Isolation Tube
Eliminates power fluctuations created by air turbulence

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 5 different cooling modules

Very High Damage Threshold
100 kW/cm₂ in average power density

Compact Design
Only 21 mm thick (15S model)

Energy Mode
Measure single shot energy up to 200 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 4 different cooling modules

Very High Damage Threshold
100 kW/cm₂ in average power density

Very Large Aperture
50 mm effective aperture diameter, perfect for the largest beams

Highest Energy Readings in the Series
Measure single shot energy up to 500 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 2 different cooling modules

High Peak Power Volume Absorber

• Perfect for high density beams
• Average power density of 700 W/cm₂ prevents degradation caused by repetitive pulses

Compact Design
Only 21 mm thick (15S model)

Energy Mode
Measure single shot energy up to 40 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 4 different cooling modules

High Peak Power Volume Absorber

• Perfect for high density beams
• Average power density of 700 W/cm₂ prevents degradation caused by repetitive pulses

Large Aperture
55 mm aperture to accomodate the largest beams

High Average Power
Up to 200 W of continuous power with the watercooled unit

Energy Mode
Measure single shot energy up to 500 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

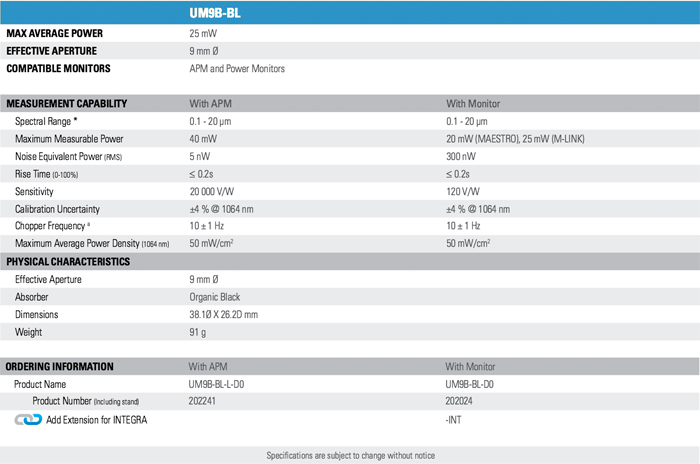

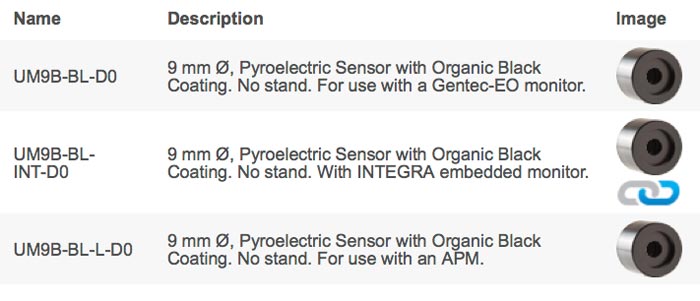

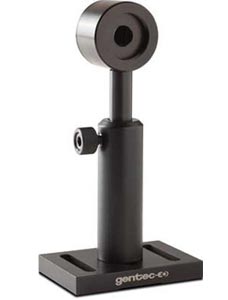

Very Low Noise Level
Noise levels of a photo detector, but with the large bandwidth of a pyroelectric: Down to 5 nW when using the Analog Power Module (APM)

Very High Responsivity
Up to 20 000 V/W when using the analog power module (APM)

Very Large Bandwidth
From DUV to FIR thanks to pyroelectric technology

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure
